Gauge pressure
Cerabar PMC11

Cost-effective pressure transducer with ceramic sensor for measurement in gases or liquids

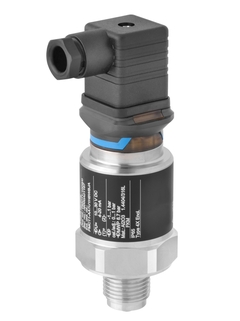

  • Cerabar PMC11 ©Endress+Hauser

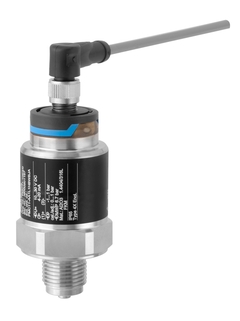

  • Cerabar PMC11 ©Endress+Hauser
  • Pressure measuring principle

The Cerabar PMC11 is the most price-attractive compact pressure transmitter in its segment. It features a capacitive, oil-free ceramic sensor and is able to measure gauge pressure from 400mbar up to 40bar. The PMC11 is designed for standard applications in the process industry and to withstand the conditions with the use of high quality materials like 316L and 99,9% Al2O3.

Benefits

  • Easy and time-saving installation and set up within the plant due to very compact construction and customizable measuring ranges

  • Reference accuracy of 0.5% together with high long- term stability and repeatability ensures a high quality of process monitoring in standard processes

  • Capacitive oil-free measuring cell with high abrasion resistance and 100% test coverage during production guarantees long process availability

Field of application

Pressure transducer with oil-free ceramic sensor to measure gauge pressure in gases or liquids.

  • Process connections: Threads

  • Process temperature: -25 to +85°C (-13 to +185°F)

  • Process pressure: 400mbar to +40bar (6 to 600psi)

  • Accuracy: ±0.5% of span

Features and specifications

Documents / Manuals / Software

Accessories / Spare parts

Predecessor / Successor

Predecessor: Cerabar T PMC131
