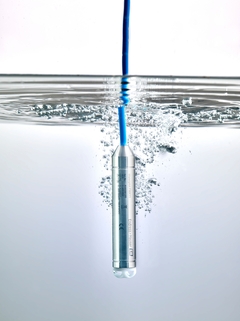

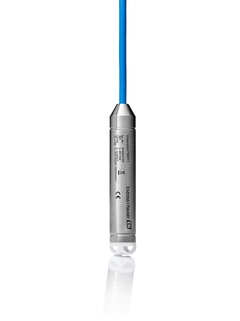

Waterpilot FMX11 - Hydrostatic level measurement

Hydrostatic Level measurement
Waterpilot FMX11

Simple and reliable level probe for freshwater applications

FMX11
Please Wait (spinning wheel)
Loading price
Prices temporarily unavailable
Price on request
activating price
price: provide information
from CHF ??.-

Specs at a glance

  • Accuracy

    pn ≥ 400mbar: 0.35 %
    pn < 400mbar: 0.50 %

  • Process temperature

    -10°C...+70°C
    (+14°F...+158°F)

  • Pressure measuring range

    200 mbar...2 bar
    (3 psi...29 psi)

  • Process pressure / max. overpressure limit

    10 bar (145 psi)

  • Main wetted parts

    316L

  • Max. measurement distance

    20 m H2O
    (66 ft H2O)

  • Material process membrane

    Metal

  • Measuring cell

    200 mbar...2 bar
    (3 psi...29 psi)

Field of application

The Waterpilot FMX11 transmitter is typically used in environmental applications for hydrostatic level measurement. It is certified for drinking water applications and can be used in wells, storage tanks, water towers, dams, gauging stations, lakes and rivers.

  • Temperature: –10 to +70°C (14 to 158°F)

  • Measuring range: 0 to 2bar / 20m H20 (0 to 30psi / 67ft H2O)

  • Cable length: 6 to 30m

  • Accuracy: up to ±0.35%

  • Drinking water approvals: ACS, KTW, NSF61, DVGW

  • Certifications: cULus

Benefits

  • Simple and reliable transmitter for various drinking water applications

  • Easy installation, commissioning and operation

  • Orderable with flexible measuring ranges and cable lengths tailored to fit your application

  • Robust construction for durable long-term services

  • Suitable for surface water monitoring in rivers and lakes as well as level monitoring for drinking water production, e.g. in water towers, dams, gauging stations

  • Compact size d=22mm (0.87”), makes this an excellent choice for applications in bore holes and small diameter stilling wells.

  • Simple specification and ordering
