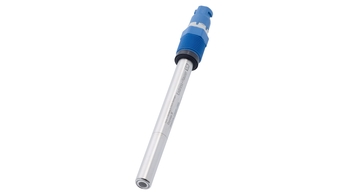

Oxymax COS21D

This product is no longer available.

Please check new generation in the section predecessor / successor or contact your local Endress+Hauser entity.

Features and specifications

Back

Details

Measuring principle

Sensor Oxygen
Application

Process control in enzyme production
Control of culture growth
Biotechnological production
Food industry
General process applications
Installation

Standard process connection Pg 13.5
Installation in standard pH assemblies possible
Characteristic

Digital sensor for measuring dissolved oxygenSensor with long-term stability for frequent sterilization and autoclaving.
Sensor for standard applications
CO2 compatible trace sensor for the beverage industry
Trace sensor in the power plant sector
Measurement range

0,001 ... 20 mg/l
0 ... 200 %SAT
0 ... 400 hPa
Measuring principle

Amperometric measurement of dissolved oxygen.
Design

- Closed amperometric 2-electrode sensor covered with a PTFE membrane.- Sensor made of stainless steel.
- Memosens-Technology
Material

Sensorbody : stainless steelMembrane : PTFE coated stainless steel net with a silicone coating.
Dimension

Diameter : 12mm (0.46inch)shaft length : 120,225,360 and 425mm
(4.68,8.77,14.04 and 16,57inch)
Process temperature

max. 130°C
(max.266°F)
Process pressure

max. 4bar
(mac.58psi)
Temperature sensor

Integrated NTC temperature sensor
Connection

Memosens-connection head
Additional certifications

- material certification 3.1.B
- Surface roughness Ra<0,8

Show more
Show less

Documents / Manuals / Software

Download type

Filter

Technical Information Oxymax H COS21D
Digital sensor for measuring dissolved oxygen

Technical Information (TI)
Operating Instructions Oxymax H COS21D
Digital oxygen sensor

Operating Instruction (BA)
Manufacturer Declaration
TSE/BSE free

Certificate (ZE)
Memoclip
Äußere Kennzeichnung von digitalen Sensoren und Kabeln mit
Memosens-Technologie

Special Documentation (SD)
Systemy pomiarowe w energetyce- ECiZ_10_2010
Pomiary przewodności elektrolitycznej oraz stężenia tlenu śladowego w
branży energetycznej.

Publications (PU)

04/12

Polish
Optimal dosing of oxygen for yeast propagation
Oxymax H COS21D in use in a brewery

Case Studies (CS)

09/08

English
Memosens – Weg frei zum Industriestandard
Memosens-Technologie wird künftig gemeinsam genutzt und weiterentwickelt

Innovations (IN)

05/09

German
Memosens: En route to becoming the industry standard
Joint effort for utilizing and enhancing Memosens technology in the
future

Innovations (IN)

05/09

English
