Conductive
Point level detection
Liquipoint FTW31

Liquipoint FTW31 ©Endress+Hauser

Rod probe for multipoint detection for up to
5 switch points

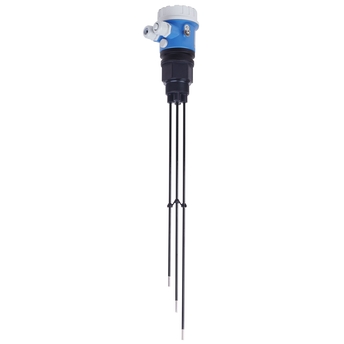

The Liquipoint FTW31 offers simple and safe point level detection in conductive liquids. It offers numerous measuring possibilities due to multipoint detection (up to 5 rods).

  • Benefits

    • Cost-effective probe for conductive liquids with detection of up to five point levels with one probe

    • No calibration required

    • Standard setting for the most common conductive liquids

    • No moving parts in the tank - long service life, reliable operation with...

  • Field of application

    For use in conductive liquids (as of 10μS/cm). For overfill prevention, dry running protection,
    two-point control of pumps or multiple point detection.

    • Process connections: Threads

    • Sensor length: 0.1 to 4m (3.9 to 157")

    • Temperature: -40 to 100°C (-40...

Features and specifications

Back

Details

  • Measuring principle

    Conductive

  • Characteristic / Application

    Compact rod probe with multipoint detection, possible up to 5 switch points. Simple rod shortening.

  • Supply / Communication

    DC PNP 10,8V ... 45V
    Relay 20V ... 230V AC
    Relay 20V ... 55V DC

  • Ambient temperature

    -40 °C ... 70 °C
    (-40 °F ... 158 °F)

  • Process temperature

    -40 °C ... 100 °C
    (-40 °F ... 212 °F)

  • Process pressure absolute / max. overpressure limit

    Vacuum ... 10 bar
    (Vacuum ... 145 psi)

  • Min. conductivity of medium

    10 µS/cm

  • Main wetted parts

    316L, PP, PPS

  • Max. tensile strength

    1000 N

  • Process connection

    G 1 1/2
    NPT1 1/2"

  • Sensor length

    0.1m ... 4m
    (3.9" ... 157")

  • Communication

    DC PNP
    Relay

  • Certificates / Approvals

    ATEX

  • Safety approvals

    Overfill prevention WHG

    Leakage Detection

  • Components

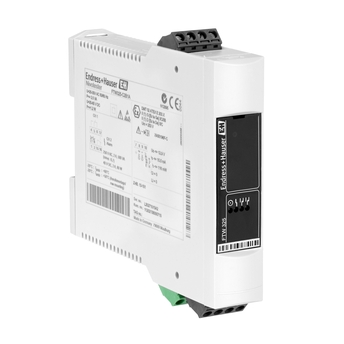

    Transmitter: FTW325

  • Application limits

    Observe min. medium conductivity

Documents / Manuals / Software

Accessories / Spare parts

Nr
Order code
Specification
    • Order code

      Unit is not repairable.

    • Order code 52017268

      Cover F24, PBT (FTW31/32), gasket

      Usage: version without electronics.

    • Order code 52025606

      Cover F16 grey, PBTP, gasket

      Gasket EPDM. Usage: housing F16 Polyester, FMI21, FMI51/FMI52, FMU30, FTI51/FTI52/ FTI55/FTI56, FTI77, FTL50/FTL51/FTL51C/ FTL51H, FTL70/FTL71, FTL80/FTL81/FTL85, FTW31/FTW32.

    • Order code 52004137

      O-ring 71.0x3.55 EPDM, 5 pieces

      Usage: cover, housing F16, Polyester.

    • Order code 52017271

      Electronics FEW52

      Usage: point level switch, conductive, FTW31/FTW32. Output PNP 10.8-45VDC.

    • Order code 52017272

      Electronics FEW54

      Usage: point level switch, conductive, FTW31/FTW32. Output relay 20-253VAC, 20-55VDC.

    • Order code 52017273

      Electronics FEW58

      Usage: point level switch, conductive, FTW31/FTW32. Output NAMUR.

    • Order code 52026734

      Cable monitoring board

      Liquipoint T.

    • Order code 52017270

      Provide spacer FTW31-rods, 4 pieces

    • Order code 71127760

      Protection cover F16 housing

      Usage: FDR56, FMI21, FMI51/FMI52, FQR56, FTI51/FTI52/FTI55/FTI56, FTI77, FTL50/FTL50H/FTL51/FTL51C/FTL51H, FTL70/FTL71, FTL80/FTL81/FTL85, FTM20/FTM21, FTM50/FTM51/FTM52, FTR20, FTW31/FTW32/FTW33.

  • 57
    • Nr 57 Order code 52014047

      Sealing ring G1-1/2, 48x55 FA, 5 pcs.

      Process gasket DIN7603-A. Usage: process connection, FMI21, FMI51/FMI52, FTI51/FTI52, FTI55, FTW31/FTW32, FMP51/FMP57, FMR60/FMR62/FMR67, Sliding sleeve G1-1/2 316L (52003665), 316L,3.1 (52011882), FTL51, FTL71,FTL81, AlloyC4 (52003666), FTL51, FTL71.

    • Order code 52014146

      Mounting nut G1-1/2

      Hexagon, SW60. Usage: Liquipoint T, Liquicap T, Prosonic M FMU40, Prosonic T FMU30, FMR10, FMR20.

  • Predecessor
