Field of application

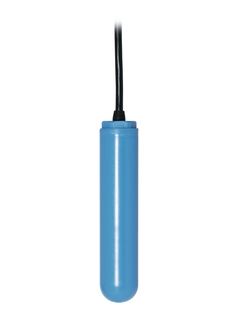

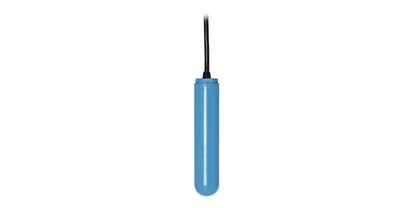

The Float switch FTS20 is a simple and cost-effective solution for point level detection in appropriate fluids. It is used in tanks and vessels as a pump protector or level alarm in open basins, e. g. in sewerage treatment plants. The float switch has two output options, a NAMUR switching signal or a change-over contact.
Point level switch for appropriate fluids. Used in tanks and vessels as an overfill prevention or as a pump protector. Different sensor/cable materials, e.g. PP, PVC, PUR and CSM, allow application in oily or aggressive liquids and hazardous areas.
Temperature: -20 to +85°C (-4 to +185°F)
Pressure: +3bar (+43.5psi)
International explosion protection certificates
Benefits
Reliable and cost-effective point level detection in liquids
Highest product and measurement safety due to different cable and sensor materials for different media
Electrical connections to NAMUR for hazardous areas (to Zone 1) or change-over contact (AC/DC) for universal standard application
Small diameter for simple installing using tapped hole G 1 A
