Gammapilot FTG20 - Radiometric point level

Radiometric
Point level detection

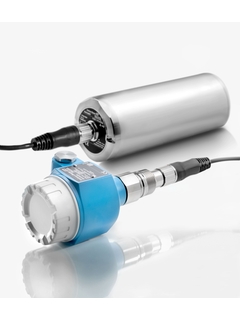

Gammapilot FTG20

Geiger-Mueller counter for point level detection with separate transmitter

FTG20
Loading price
Prices temporarily unavailable
Price on request
activating price
price: provide information

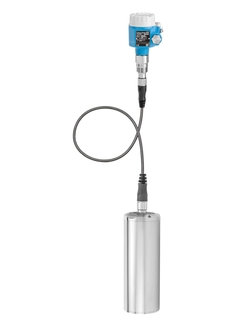

Gammapilot FTG20 aluminum housing
  • F
  • L
  • E
  • X
©Endress+Hauser

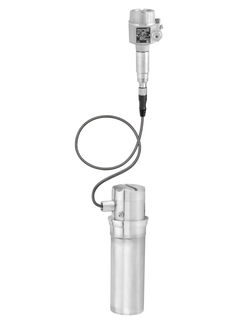

Gammapilot FTG20 stainless steel housing
  • F
  • L
  • E
  • X
©Endress+Hauser
Gammapilot FTG20
  • F
  • L
  • E
  • X
©Endress+Hauser

Specs at a glance

  • Process temperature

    Any

  • Process pressure / max. overpressure limit

    Any

  • Min. density of medium

    Any

  • Min. conductivity of medium

    Any

Field of application

The Gammapilot FTG20 is the world’s most advanced Geiger-Mueller counter with highest available sensitivity and outstanding features. Even under extreme process conditions like high pressure, high temperature, corrosiveness, toxicity and abrasion, the radiometric measuring principle can be employed without any problems.

For liquids, solids, suspensions and sludges etc. Particularly for applications under extreme measuring conditions, e.g. high pressure, high temperature, corrosiveness, toxicity, abrasion. All kinds of process vessels, e.g. reactors, autoclaves, separators, acid tanks, mixers, cyclones, cupola furnaces.

  • Temperature: No limitation (non-invasive, extraneous)

  • Pressure: No limitation (non-invasive, extraneous)

  • Switch time: Up to 0.4 seconds

  • International explosion protection certificates

Benefits

  • Sensor and transmitter: One instrument for all measuring tasks - can be used universally due to numerous certificates and approvals

  • Highest availability, reliability and safety, even for extreme process and ambient conditions

  • No recalibration after electronics exchange because of HistoROM data management concept and automatic decay compensation

  • Optimum adjustment to the respective application via a variety of sensitivity versions

  • Relay, 8/16mA (passive - two-wire loop powered) or 4 to 20mA output for easy system integration

  • Aluminum or stainless steel housing for heavy-duty applications

  • Easy commissioning and fast, on-site operation
