Flow assembly
Flowfit CCA250

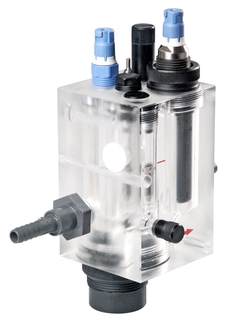

Flow assembly Flowfit CCA250 ©Endress+Hauser

Assembly for chlorine measurement in drinking, industrial, and pool water

The Flowfit CCA250 flow assembly is specially designed to accommodate all sensors needed for accurate disinfection control - the chlorine sensor and the pH/ORP sensors for compensation and measurement. It increases the availability of sensors and offers an integrated flow alarm and adjustment to make sure that your bypass measurement is always operational. With CCA250, you have complete control of your disinfection processes and the water is always free of germs.

  • Pricing after login and configuration

Quick selection

Choose from our suggested options
    -- selected coding
    -- selected label
    <%label%>
    -- selected coding
    -- selected label
    <%feature%>
  • Process Connection
      <%label%>
      <%label%>

  • <%message%>

CCA250
Show details Hide details
Show details
Back to Quick Selection
  • <%feature%>
    <%coding%>
    <%label%>
pc
  • Optional add-ons
Please use the individual configurator to continue.
or

Individual configuration

Continue your selection from all possible options

Additional components

  • Benefits

    • All sensors needed for disinfection measurement comfortably in one place

    • Suitable for all disinfection processes - free chlorine, chlorine dioxide, total chlorine and others

    • Cap screwed from below allows calibration of the pH and ORP sensors without...

  • Field of application

    CCA250 is a flow assembly for the measurement of free chlorine, total chlorine and chlorine dioxide in:

    • Drinking water
      - Trace and standard measurement in process water and distribution networks
      - Monitoring, control and optimization of disinfection...

Features and specifications

Back

Details

  • Measuring principle

    Free chlorine

  • Application

    Drinking water, water, waste water, pool, process

  • Characteristic

    - Flow through holder with 3 different emplacements : 1x chlorine/chlordioxide/total chlorine sensor and 2x pH/ORP sensor.

  • Design

    - Flow through holder made of plexiglas with flow control and proximity switch as alarm relais to the transmitter.
    - Three different emplacements
    - Calibration directly in the holder because of the screw off calibration cap.
    - Optional cleaning device for the chlorine/chlordioxide/total chlorine sensor.

  • Material

    Plexiglas (PMMA)

  • Dimension

    85mm x 85mm x 240mm

  • Process temperature

    max. 45°C

  • Process pressure

    max. 4bar

Documents / Manuals / Software

  • Technical Information CCA 250

    Flow assembly for chlorine and pH/ORP sensors

    Technical Information (TI)
  • Operating Instructions CCA250

    Flow Assembly for Chlorine Measurement

    Operating Instruction (BA)
  • Automatic control of disinfection

    Field experience, absolute control of the chlorine and bisulphite
    dosages

    Publications (PU)
    11/07
    us
  • Kompetenz in der Flüssigkeitsanalyse

    Vom Sensor bis zur schlüsselfertigen Komplettlösung

    Fields of Activities (FA)
    03/19
    German
  • Expertise in liquid analysis

    From sensors to complete turnkey solutions

    Fields of Activities (FA)
    03/19
    English
  • Catálogo Portfolio Analítica

    Desde sensores hasta soluciones completas

    Fields of Activities (FA)
    01/17
    Spanish
  • Esperti nell’analisi dei liquidi

    Dai sensori singoli a soluzioni
    complete “chiavi in mano”

    Fields of Activities (FA)
    01/17
    Italian
  • Jistota v analýze kapalin

    Od senzorů po dkompletní odávku na klíč

    Fields of Activities (FA)
    01/17
    Czech
  • A turnkey solution for free chlorine measurement

    A turnkey solution for free chlorine measurement
    Complete EPA compliant
    reagent-less free chlorine measurement system

    Competence Brochure (CP)
    01/17
    English
  • Reinigungs- und Desinfektionskosten senken

    Analysenmessgeräte überwachen ECA-Anlagen in der Lebensmittel-
    und Getränkeindustrie

    Case Studies (CS)
    05/11
    German
  • Flowfit W CCA250

    Durchflussarmatur Bis zu drei Elektrodeneinbauplätze für
    Chlor-/Chlordioxid-Sensoren bzw. pH- und Redox-Sensoren für den Einbau
    in Rohrleitungen Bypass oder Online

    Tender Text
    10/05
    German
  • FlowFit W CCA250

    1 Process flow assembly for chlorine or chlorine dioxide sensors for
    by-pass measurement

    Tender Text
    09/05
    English
  • FlowFit W

    Product Code: CCA250-
    Declaration Number: HE_01117_01.19
    Manufacturer Specification: RoHS

    Manufacturer Declaration
    German , English
  • CleanFit, CleanFit P, FlowFit W

    Product Code: CCA250-, COA451-, CPA450-, CPA471-, CPA472-, CPA472D-, CPA473-, CPA474-, CPA871-, CPA875-
    Region/Country: Russia (Declaration of Conformity)
    Approval Number: EAEC_N_D-DE.NA10.B.0145718

    Miscellaneous
    Russian
  • CleanFit, CleanFit H, CleanFit P, FlowFit W

    Product Code: CUA451-, CPA875-, CPA871-, CPA475-, CPA474-, CPA473-, CPA472D-, CPA472-, CPA471-, CPA450-, COA451-, CCA250-
    Region/Country: Russia (TR CU)
    Approval Agency: EAC
    Approval Number: TC № RU D-DE.AL32.B.02544

    Miscellaneous
    Russian

Accessories / Spare parts

Nr
Order code
Specification
  • 180
  • 100
  • 110
    • Nr 110 Order code 71279210

      Kit CCA250: Needle valve with o-ring

      and locking screw M4x16

  • 120
    • Nr 120 Order code 71279211

      Kit CCA250: Blind plug CCS complete

      Pressing screw, o-ring, blind plug

  • 130
  • 140
  • 150
    • Nr 150 Order code 71279214

      Kit CCA250: blind plug set

      2x PG13,5 with thrust collar and o-ring Blind plug for float element with o-ring Blind plug CCS complete

  • A
  • 160
  • 170
    • Nr 170 Order code 50015691

      inductive proximity switch

      Alte Material-Nummer: 117298

    • Order code 50003228

      Adapter NV 1/2 for CCA250

      2 pcs. DA16 for pipe connection

    • Order code 50003230

      Adapter SV 1/2 for CCA250; equal

      Hose connection: 2 pcs. D6/12

    • Order code 50003232

      Adapter SV 1/2 for CCA250, diff.

      Hose connection: 1pc D6/12 and 1pc D16
