Aluminum analyzer
Liquiline System CA80AL

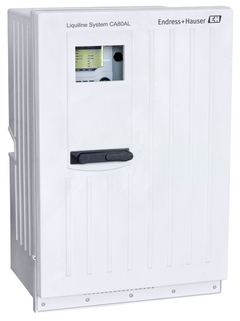

Liquiline System CA80AL - High-precision process analyzer for aluminum measurement ©Endress+Hauser

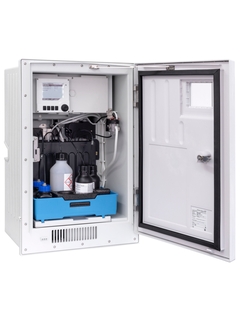

Liquiline System CA80AL aluminum analyzer - open view ©Endress+Hauser
Sample collector with level detection for the monitoring of sample transport ©Endress+Hauser

Aluminum concentration in a liquid can be measured using the colorimetric measuring principle. This video shows what it is about and how this measuring principle works.

  • Liquiline System CA80AL - High-precision process analyzer for aluminum measurement
  • Liquiline System CA80AL aluminum analyzer - open view
  • Sample collector with level detection for the monitoring of sample transport

Colorimetric system for drinking water and wastewater monitoring and optimization of process control

Liquiline System CA80AL offers precise, regulation-compliant online measurement of aluminum residues in drinking water and wastewater. The analyzer helps you to optimize aluminum dosing in flocculation processes and phosphate removal. It enables plug & play of up to 4 Memosens sensors – minimizing the installation effort. Automatic calibration and cleaning and the low reagent consumption reduce operating costs while advanced diagnostics with remote access ensure process safety.

  • Pricing after login and configuration

This product is not available in this market.

Quick selection

Choose from our suggested options
    -- selected coding
    -- selected label
    <%label%>
    -- selected coding
    -- selected label
    <%feature%>
  • Process Connection
      <%label%>
      <%label%>

  • <%message%>

CA80AL
Show details Hide details
Show details
Back to Quick Selection
  • <%feature%>
    <%coding%>
    <%label%>
pc
  • Optional add-ons
Please use the individual configurator to continue.
or

Individual configuration

Continue your selection from all possible options

  • Benefits

    • The aluminum analyzer uses the pyrocatechol violet method according to DIN ISO 10566, ensuring direct comparability to lab results

    • Supports predictive maintenance by advanced diagnostics

    • Reduces operating costs thanks to automatic calibration and...

  • Field of application

    Liquiline System CA80AL aluminum analyzer supports:

    • Limit monitoring in drinking water

    • Optimization of aluminum-based coagulation processes

    • Phosphate elimination in wastewater treatment plants

Features and specifications

Back

Details

  • Measuring principle

    Colorimetric

  • Characteristic

    Process analyzer for aluminum in aqueous solutions

    Comply with standard colorimetric measuring principle - pyrocatechol violet methot

  • Size

    Cabinet
    793 x 530 x 417 mm
    31.22 x 20.87 x 16.42 in
    Stand housing
    1693

  • Design

    Open design, cabinet and stand housing
    High-Performance plastic ASA-PC, additional stand coated steel

  • Process temperature

    4 ... 40 °C (39.2 ... 104 °F)

  • Ambient temperature

    5 ... 40C ( 41 ... 104F)

  • Process pressure

    at atmospheric pressure, < 0.2 bar

  • Sample flow rate

    min. 5ml/min (0,17 fl.oz/min)

  • Consistency of the sample

    low solid content (< 50NTU), aqueous homogeneous

  • Application

    Monitoring of the aluminum content of potable water, mineral water and industrial waste water

  • Power supply

    100 ... 120 VAC / 200 ... 240 VAC ± 10%
    24 VDC ± 10%
    50 ± 1 oder 60 ± 1,2 Hz

  • Output

    2x 0/4 ... 20 mA
    Webserver, Modbus, Ethernet/IP, Profibus DP

  • Input

    1 or 2 measuring channel

    1 ... 4 digital sensor inputs for sensors with Memosens protocol (optional)

  • Measurement range

    15 ... 1000 µg/l

  • Consumables

    Reagents and standard solutions CY80AL as well as cleaner CY800 are necessary for the operation. Regular maintenance is done with the parts of the maintenance kit CAV800.

Documents / Manuals / Software

Accessories / Spare parts

Nr
Order code
Specification
    • Order code

      Housing

    • Order code

      Maintenance booklet CA80xx for download

    • Order code CY80AL-

      Reagent / Standard solution CY80AL

      Reagent set for CA80AL with long shelf life or respectively standard solution

    • Order code CAV800-

      CAV800 Maintenance kit Liquisystem CA8x

      Kits with all maintenance parts for Liquiline System CA8x analyzers Content: dispensers, hoses, connectors, O-ring for the sample collector, filter mats. Optional: in-and outlet hoses(PA), Liquidmanager without motor (PT) or 2 sample collector beakers(PV)

    • Order code CAC800-

      Liquiline System CAC800

      Sample hoses for Liquiline System with different lengths
