Iron analyzer
Liquiline System CA80FE

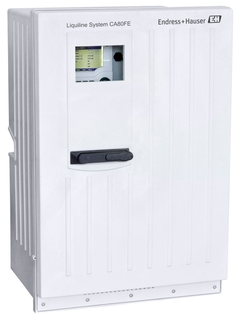

Liquiline System CA80FE - High-precision process analyzer for iron measurement ©Endress+Hauser
Liquiline System CA80FE - Inside view of the iron analyzer ©Endress+Hauser
Sample collector with level detection for the monitoring of sample transport ©Endress+Hauser

Iron concentration in a liquid can be measured using the colorimetric measuring principle. This video shows what it is about and how this measuring principle works.

Colorimetric system for monitoring of drinking water, mineral water and process water

Liquiline System CA80FE offers precise, regulation-compliant online measurement. It supports you in controlling the iron content of drinking water, mineral water or source water for industrial processes. Like all Liquiline System analyzers, it enables plug & play of up to four Memosens sensors – minimizing the installation effort. Automatic calibration and cleaning and the low reagent consumption reduce operating costs while advanced diagnostics with remote access ensure process safety.

  • Benefits

    • Compliance with standard ferrozine method ensures direct comparability to lab measurements

    • Supports predictive maintenance by advanced diagnostics

    • Reduced operating costs through automatic calibration and cleaning as well as low reagent consumption

    • ...

  • Field of application

    Liquiline System CA80FE monitors:

    • Iron content in drinking water and mineral water

    • Residual iron after precipitation, flocculation and filtration processes

    • Process water containing diluted iron

Features and specifications

Back

Details

  • Measuring principle

    Colorimetric

  • Characteristic

    Process analyzer for iron in aqueous solutions
    Comply with standard colorimetric measuring principle, ferrozine method

  • Size

    Cabinet:
    793 x 530 x 417 mm
    31.22 x 20.87 x 16.42 in
    Stand housing:
    1723 x 930 x 654 mm
    67.83 x 36.61 x 25.74 inch

  • Design

    Open design, cabinet and stand housing
    High-Performance plastic ASA-PC, additional stand coated steel

  • Process temperature

    4 to 40 °C (39.2 to 104 °F)

  • Ambient temperature

    5 to 40 °C (41 to 104 °F)

  • Process pressure

    At atmospheric pressure, < 0.2 bar

  • Sample flow rate

    Min. 5 ml/min (0.17 fl.oz/min)

  • Consistency of the sample

    Suspended solids content
    Turbitity < 50 NTU, aqueous, homogenized

  • Application

    Monitoring of the iron content of potable water, mineral water and source water for industrial processes

  • Power supply

    100 to 120 VAC / 200 to 240 VAC ± 10%
    24 VDC ± 10%
    50 ± 1 or 60 ± 1,2 Hz

  • Output

    2x 0/4 to 20 mA
    Webserver, Modbus, Ethernet/IP, Profibus DP

  • Input

    1 or 2 measuring channel
    1 to 4 digital sensor inputs for sensors with Memosens protocol (optional)

  • Measurement range

    0.05 to 2 mg/l
    0.1 to 5 mg/l

  • Consumables

    Reagents and standard solutions CY80FE for the operation
    Regular maintenance is done with the parts of the maintenance kit CAV800

Documents / Manuals / Software

Accessories / Spare parts

Nr
Order code
Specification
    • Order code
    • Order code

      Maintenance booklet CA80xx for download

    • Order code CY80FE-

      Reagent / Standard solution CY80FE

      Reagent set for CA80FE with long shelf life or respectively standard solution Contains dangerous goods

    • Order code CAV800-

      CAV800 Maintenance kit Liquisystem CA8x

      Kits with all maintenance parts for Liquiline System CA8x analyzers Content: dispensers, hoses, connectors, O-ring for the sample collector, filter mats. Optional: in-and outlet hoses(PA), Liquidmanager without motor (PT) or 2 sample collector beakers(PV)

  • 102
  • 103
  • 107
  • 108
  • 109
  • 111
  • 113
  • 114
  • 105
  • 115
  • 117
  • 118
  • 122
  • 124
  • 127
  • 128
  • 133
  • 134
  • 135
  • 137
  • 138
  • 140
  • 141
  • 149
  • 142
  • 144
  • 146
    • Order code 71107452

      Kit: 1x set of terminals basic module

      CM442/CM444/CM448/CSF48/CSP44

    • Order code 71107453

      Kit: 1x set of terminals module AOR

      CM442/CM444/CM448/CSF48

    • Order code 71155581

      Kit: 1x set of terminals module 4R

      CM442/CM444/CM448/CSF48

    • Order code 71155582

      Kit: 1x set of terminals module 4AO

      CM442/CM444/CM448/CSF48

    • Order code 71155583

      Kit: 1x set of terminals module 2xAI,485

      CM442/CM444/CM448/CSF48

    • Order code 71219784

      Kit: 1x set of terminals module DIO

    • Order code 71101762

      Kit: display cable

      CM442/CM444/CM448/CSF48

    • Order code 71127100

      SD-Card with Firmware, 1GB

      Industrial Flash Drive, Liquiline firmware for 4-wire platform CM442 / CM444 / CM448 / CSF48

    • Order code 71110815

      SD-Card, 1GB, Industrial Flash Drive

      .

    • Order code 71249548

      Kit CA80xx: 1x digital sensor inputs

    • Order code 71249555

      Kit CA80xx: 2x digital sensor inputs

    • Order code 71111053

      Kit : module AOR

      2x Relay, 2x 0/4..20mA Out CM442 / CM444 / CM448 / CSF48 CM442R / CM444R / CM448R

    • Order code 71125375

      Kit: module 2R

      2x Relay CM442 / CM444 / CM448 / CSF48 CM442R / CM444R / CM448R

    • Order code 71125376

      Kit: module 4R

      4x Relay CM442 / CM444 / CM448 / CSF48

    • Order code 71135632

      Kit: module 2AO

      2x 0/4..20mA Out CM442 / CM444 / CM448 / CSF48 CM442R / CM444R / CM448R

    • Order code 71135633

      Kit: module 4AO

      4x 0/4..20mA Out CM442 / CM444 / CM448 / CSF48 CM442R / CM444R / CM448R

  • 14
    • Nr 14 Order code 71135634

      Kit: module 485

      (+Webserver) Extendable via upgrade code to Profibus DP or Modbus RS485 or Modbus TCP or EtherNet/IP CM442/CM444/CM448/CSF48 CM442R/CM444R/CM448R

    • Order code 71135639

      Kit: module 2AI

      2x 0/4..20mA In CM442 / CM444 / CM448 / CSF48 CM442R / CM444R / CM448R

  • 14
    • Nr 14 Order code 71135631

      Kit: module 2DS

      2x digital sensor CM442 / CM444 / CM448 / CSF48 CM442R / CM444R / CM448R

    • Order code 71272410

      Kit: module ETH

      (+Webserver) extendable via upgrade code to Modbus TCP or EtherNet/IP CM442/CM444/CM448/CSF48 CM442R/CM444R/CM448R

  • 14
    • Nr 14 Order code 71135638

      Kit: module DIO

      2x digital in, 2x digital out CM442 / CM444 / CM448 / CSF48 CM442R / CM444R / CM448R

    • Order code 71279809

      Upgrade Kit: Modul ETH + Modbus TCP

      (+Webserver) CM442/CM444/CM448/CSF48 CM442R/CM444R/CM448R

  • 14
    • Nr 14 Order code 71140889

      Upgrade Kit: Modul 485 + Modbus RS485

      (+Webserver) CM442/CM444/CM448/CSF48 CM442R/CM444R/CM448R

    • Order code 71279812

      Upgrade Kit: Modul ETH + EtherNet/IP

      (+Webserver) CM442/CM444/CM448/CSF48 CM442R/CM444R/CM448R

  • 14
    • Nr 14 Order code 71140888

      Upgrade Kit: Modul 485 + Profibus DP

      (+Webserver) CM442/CM444/CM448/CSF48 CM442R/CM444R/CM448R

    • Order code 71279813

      Upgrade code: Modbus TCP f.module ETH

      Enter this code to change active fieldbus protocol to Modbus TCP (provide serial number of device) CM442/CM444/CM448/CSF48 CM442R/CM444R/CM448R

    • Order code 71279830

      Upgrade code: EtherNet/IP for module ETH

      Enter this code to change active fieldbus protocol to EtherNet/IP (provide serial number of device) CM442/CM444/CM448/CSF48 CM442R/CM444R/CM448R

    • Order code 71135635

      Upgrade code: Profibus DP f. module 485

      Enter this code to change active fieldbus protocol to Profibus DP (provide serial number of device) CM442 / CM444 / CM448 / CSF48 CM442R / CM444R / CM448R

    • Order code 71135636

      Upgrade code: Modbus RS 485 f.module 485

      Enter this code to change active fieldbus protocol to Modbus RS485 (provide serial number of device) CM442 / CM444 / CM448 / CSF48 CM442R / CM444R / CM448R

    • Order code 71219871

      Upgrade code: EtherNet/IP f.module 485

      Enter this code to change active fieldbus protocol to EtherNet/IP (provide serial number of device) CM442/CM444/CM448/CSF48 CM442R/CM444R/CM448R
