OUA260 is the best-in-class flow cell for absorption, color and turbidity measurements.

Assembly for process photometers
OUA260

Flow assembly for a variety of optical inline measurements

OUA260
Loading price
Prices temporarily unavailable
Price on request
activating price
price: provide information
from CHF ??.-

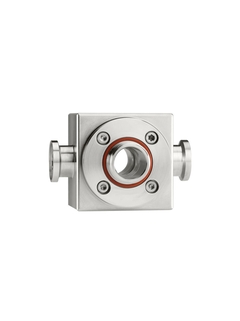

Flow assembly for process photometers ©Endress+Hauser

Specs at a glance

  • Process temperature

    0 to 130 °C (32 to 194 °F)

  • Process pressure

    up to 20 bar (300 psi) depending on material, mean diameter and process connection

Field of application

OUA260 is the best-in-class flow assembly for absorption, color and turbidity measurements. Its ultra-hygienic design and certified biocompatibility meet the highest demands to protect your products reliably from contamination. Multiple process connections and available materials ensure a perfect fit and performance even in aggressive media. Better still, its low cell volume speeds up sensor response times, thus providing you with fast measured values.

The OUA260 flow cell is used in combination with:

  • OUSAF12 Suspended solids and color sensor

  • OUSAF22 Color sensor

  • OUSAF44 UV absorption sensor

  • OUSAF46 UV absorption sensor

  • OUSTF10 Turbidity and suspended solids sensor

Typical applications are:

  • Chromatography control

  • Filtration monitoring

  • Color measurement

  • Centrifuge control

  • Protein concentration

  • Turbidity measurement

  • Phase detection

OUA260 is suitable for hazardous area use. A pharma certificate of compliance with serial number specified is available.

Benefits

  • Low volume of the flow assembly significantly reduces sample consumption

  • Suitable for cleaning-in-place (CIP) and sterilization-in-place (SIP)

  • Certified biocompatibility according to USP class VI

  • Ultra-hygienic thanks to electropolished surface Ra=0.4 µm (16 µinch)

  • Compliant with EG 2023/2006 and 1935/2004

  • Wide range of materials and process connections for perfect fit into every application

  • Wide range of optical window materials and path lengths for optimum adaption to every process
