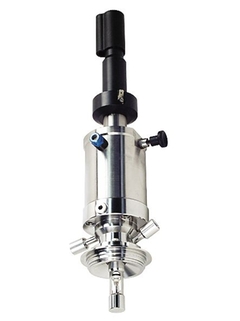

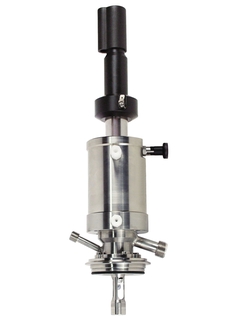

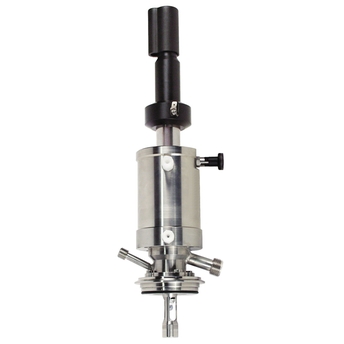

Name: Cleanfit H CPA475
Brand: Endress+Hauser
Availability: InStock

This product is no longer available.

Please check new generation in the section predecessor / successor or contact your local Endress+Hauser entity.

Successor

Cleanfit CPA875

Sterilizable assembly for the life sciences and food & beverage industries
Read more

Loading price

Prices temporarily unavailable

Price after login

Price on request

activating price

price: provide information

Simple products
Easy to select, install and operate

Technical excellence

Simplicity

What is FLEX?

Standard products
Reliable, robust and low-maintenance

Technical excellence

Simplicity

What is FLEX?

High-end products
Highly functional and convenient

Technical excellence

Simplicity

What is FLEX?

Specialized products
Designed for demanding applications

Technical excellence

Simplicity

Variable

What is FLEX?

FLEX selections	Technical excellence	Simplicity
F L E X Fundamental selection Meet your basic measurement needs	Technical excellence	Simplicity
F L E X Lean selection Handle your core processes easily	Technical excellence	Simplicity
F L E X Extended selection Optimize your processes with innovative technologies	Technical excellence	Simplicity
F L E X Xpert selection Master your most challenging applications	Technical excellence	Simplicity Variable

Learn more about the FLEX selections

Application

Food, pharmaceuticals, process
Installation

Retractable assembly
Characteristic

Open and closed tank, piping (min. DN80)
Design

- hygienic style - manual or pneumatic, can be fully automated with CPC30 / 310 - integrated rinse chamber (Z-shape) with connection G1/4" or NPT1/4".
Material

Holder: stainless steel 1.4435Sealing : different materials (FDA) available.
Dimension

Immersion depth: 48 - 102mm
(1.87 inch -3.97 inch)
Process temperature

max. 80 or 140°C
(176°F or 284°F)
Process pressure

max. 4/6 or 10 bar
(58 psi/87 psi or 145 psi)
Connection

DN25 thread adapter nut, Triclamp, Varivent, APV, dairy fitting DN50, process connection DN50/PN10, process connection ASME 2"/150 lbs
Additional certifications

- 3.1.B EN 10204- 3A / EHEDG (inline steam sterilisability + cleanability)

Application

Food, pharmaceuticals, process
Installation

Retractable holder
Characteristic

Open and closed tank, piping (min. DN80)
Design

- hygienic style- manual or pneumatic, can be fully automated with CPC30 / 300.- integrated rinse chamber (Z-shape) with connection G1/4" or NPT1/4".
Material

Holder : stainless steel 1.4435Sealing : different materials (FDA) available.
Dimension

Immersion deepth : 48 - 102mm
Process temperature

max. 80 bzw. 140°C
Process pressure

max. 4/6 bzw. 10bar
Connection

DN25 thread adapter nut, Triclamp, Varivent, APV, dairy fitting DN50, flange DN50/PN10, flange ASME 2"/150lbs
Additional certifications

- 3.1.B EN 10204- 3A / EHEDG (inline steam sterilisability+cleanability)

Application

Food, pharmaceuticals, process
Characteristic

- Retractable holder- Open and closed tank, piping (min. DN80)
Design

- hygienic style- manual or pneumatic, can be fully automated with CPC30 / 300.- integrated rinse chamber (Z-shape) with connection G1/4" or NPT1/4".
Material

Holder : stainless steel 1.4435Sealing : different materials (FDA) available.
Dimension

Immersion depth : 48 - 102mm
(1.87inch -3.97inch)
Process temperature

max. 80 or 140°C
(176°F or 284°F)
Process pressure

max. 4/6 or 10bar
(58psi/87psi or 145psi)
Connection

DN25 thread adapter nut, Triclamp, Varivent, APV, dairy fitting DN50, flange DN50/PN10, flange ASME 2"/150lbs
Additional certifications

- 3.1.B EN 10204- 3A / EHEDG (inline steam sterilisability+cleanability)

Filter

Search spare parts by number in drawing

- Show drawing (PDF)

60 spare parts & accessories

Texts from BDIH missing (71217191)

further parts

Order code

71217191
KIT CPA475 piston gel hand

further parts

Order code

51506844
KITCPA471/472 retr.pipe Gel hand shor

further parts

Order code

51503717
KIT CPA475 piston KCL hand

further parts

Order code

51506843
KIT CPA471/472 pipe KCL hand short

further parts

Order code

51503714
KIT CPA471/472 pipe KCLpneum. short

further parts

Order code

51503713
KIT CPA471/472 retr.pipe Gel pn.short

further parts

Order code

51503715
KIT CPA471 cylinder ss short

further parts

Order code

51503775
KITCPA475 electrode gu. compl. G11/4"

further parts

Order code

51506842
KIT CPA475 electrode guide complete

further parts

Order code

51506841
KIT CPA475 APV connection

further parts

Order code

51506835
KIT CPA475 VARIVENT connection

further parts

Order code

51506836
KIT CPA475 dairy fitting DN50

further parts

Order code

51506837
KIT CPA475 Tri Clamp 2" connection

further parts

Order code

51506838
KIT CPA475 flange DN50 connection

further parts

Order code

51506834
KIT CPA475 flange ANSI 2" connection

further parts

Order code

51506833
KIT CPA475 rinse housing M G1/4"

further parts

Order code

51506839
KITCPA475 rinse housingG11/4" M G1/4"

further parts

Order code

51506840
O-Ring set EPDM for CPA475

further parts

Order code

51506408
O-Ring set EPDM for CPA475

further parts

Order code

51518385
O-Ring set FPM (Viton) for CPA475

further parts

Order code

51506407
O-Ring set Viton CPA475

further parts

Order code

51518386
CPA471...5 all seals w/o medium contact

further parts

Order code

71064624
Pneum. proxim. switches f.retrofitting

further parts

Order code

51502874
KIT CPA47x electr. proxim.switches

further parts

Order code

51502873
KIT CPA47X: Throttel check valve

further parts

Order code

71329949
Splash protection cap for assemblies

further parts

Order code

51517522
Protective sleeve wide f. KCl-electr.

further parts

Order code

50080430
Protective pipe short f.process assembly

further parts

Order code

51518182
KitCPA471/472/475: Retr. p. KCl pneum

further parts

Order code

71162343
KitCPA471/472/475:Retr. p. KCl manual

further parts

Order code

71162344
KitCPA475: Hubrohr KCl Hand G11/4"

further parts

Order code

71162345
KIT CPA47x:stop bolt with handle (1 pc.)

further parts

Order code

51503731
KIT CPA47x pneu.connection G1/8 AD6 10p

Order code

51503730
Kit Sensor output interface

Order code
