Cerabar PMP55 - Absolute and gauge pressure

Absolute and
gauge pressure

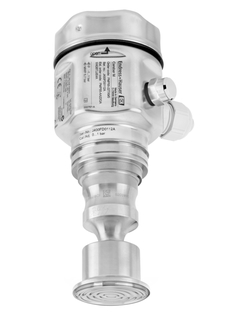

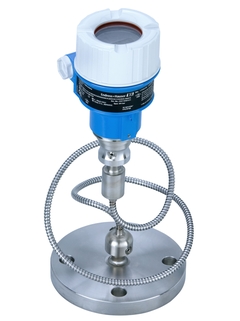

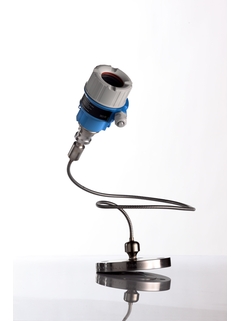

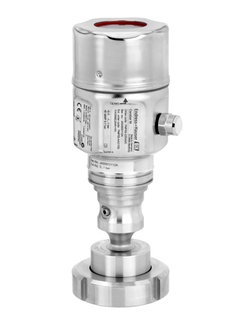

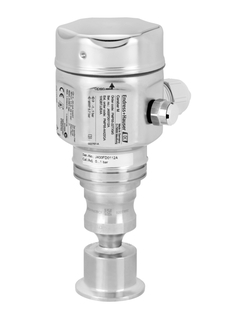

Cerabar PMP55

Digital pressure transmitter with fully welded diaphragm seal for measurement in gases or liquids

PMP55

Compare

Specs at a glance

Accuracy

Standard 0.15%
Platinum 0.075%
Process temperature

-70°C…400°C
(-94°F…752°F)
Pressure measuring range

1 bar...400 bar
(15 psi...6000 psi)
Process pressure / max. overpressure limit

600 bar (9000 psi)
Main wetted parts

316L
AlloyC
Montel
Tantal
Rhodium
Max. measurement distance

4000m (13.123ft) H2O
Material process membrane

316L, AlloyC,
Tantal, PTFE,
Rhodium>Gold
Measuring cell

400 mbar...400 bar
(5.8 psi...6000 psi)
relative/ absolute

See all specifications

Field of application

The Cerabar PMP55 digital pressure transmitter with metal diaphragm seal is typically used in process and hygiene applications for pressure, level, volume or mass measurement in liquids. Suitable for high pressure as well as extreme process temperature applications from -70 up to +400°C (-94 to 750°F). Quick Setup with adjustable measuring range allows simple commissioning, reduces costs and saves time. SIL2 according to IEC 61508 and IEC 61511.

Single chamber aluminum or stainless steel (316L) housing.

Process connections: Threads, flanges or hygienic connections
Process temperature: -70 to +400°C (-94 to +752°F)
Measuring ranges: -1/0 up to +400bar (-15/0 up to +6,000psi)
Accuracy: ±0.15%, "Platinum" ±0.075%
International explosion protection certificates, SIL, hygienic approvals, marine approvals

Benefits

Large variety of different process connections and membrane materials
New TempC Membrane minimizes influences of ambient and process temperature fluctuations
Easy menu-guided commissioning via on-site display, 4 to 20mA with HART, PROFIBUS PA, FOUNDATION Fieldbus
For process pressure monitoring up to SIL2, certified to IEC 61508 and IEC 61511
Modular concept for easy replacement of display or electronics
Seamless and independent system integration (HART/PA/FF)
