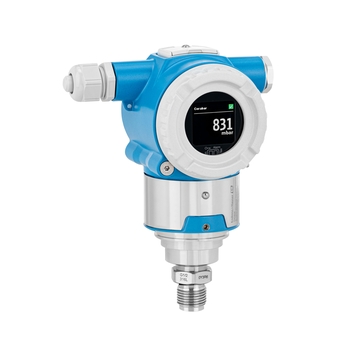

Cerabar PMP50 - product picture

Cerabar PMP50 – pressure transmitter

Pressure transmitter with metal membrane for highly accurate measurement of liquids and gases

PMP50
Loading price
Prices temporarily unavailable
Price on request
activating price
price: provide information

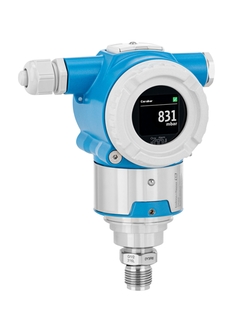

Cerabar PMP50
  • F
  • L
  • E
  • X
©Endress+Hauser

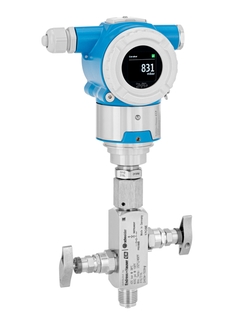

Cerabar PMP50, mounted manifold
  • F
  • L
  • E
  • X
©Endress+Hauser

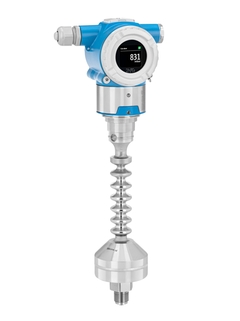

Cerabar PMP50, temperature isolator
  • F
  • L
  • E
  • X
©Endress+Hauser

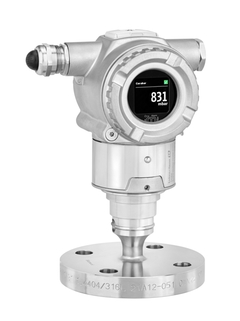

Cerabar PMP50, flange, stainless steel housing
  • F
  • L
  • E
  • X
©Endress+Hauser

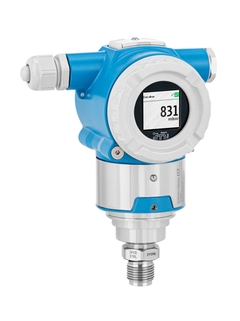

Cerabar PMP50, light display
  • F
  • L
  • E
  • X
©Endress+Hauser

Specs at a glance

  • Accuracy

    Standard:
    up to 0.065 %
    Platinum:
    up to 0.055 %

  • Process temperature

    Standard:
    -40°C…+125°C
    (-40°F...+257°F)
    Diaphragm seal:
    -70°C...+400°C
    (-94°F...+752°F)

  • Material process membrane

    316L, AlloyC, Gold

  • Measuring cell

    1 bar...400 bar
    (14.5 psi...5800 psi)

Field of application

The Cerabar PMP50 is a pressure transmitter with metal membrane for measurement of liquids and gases. It is optimized for standard applications and offers intuitive and safe operating functions.

  • Pressure measuring range: up to 400 bar (6000 psi)

  • Process temperatures up to 400°C (752°F) with diaphragm seal

  • Accuracy: up to +/-0.055%

Benefits

  • Software wizard enables fast and easy commissioning

  • Devices developed in accordance with IEC 61508

  • Flexible write protection via hardware and/or software wizard

  • Pre-assembled manifolds (pressure and leakage-tested) for faster installation
