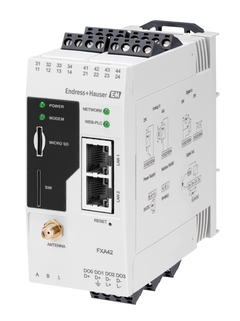

Fieldgate FXA42 - Gateway for remote monitoring

Gateway for
measurement values
Fieldgate FXA42

Communication of measurement values of connected 4 to 20mA analog as well as digital field devices

FXA42
Loading price
Prices temporarily unavailable
Price on request
activating price
price: provide information
Fieldgate FXA42 - Gateway for remote monitoring
  • F
  • L
  • E
  • X
©Endress+Hauser

Specs at a glance

  • Input

    4x 4...20 mA analog
    4x digital
    Pulse counter
    Modbus TCP
    Modbus RS485

  • Output

    4x digital
    Modbus TCP
    Modbus RS485

Field of application

Fieldgate FXA42 is developed for monitoring of field devices with digital or 4 to 20mA interface regardless of location. It supports communication interfaces like Ethernet, WLAN or cellular communication. With its integrated web server technology it can easily be configured online and measured values can be visualized online. FXA42 also offers data logging and alarm management functions.

For remote monitoring of connected 4 to 20mA analog as well as digital field devices via Ethernet, WLAN or cellular communication.

  • Measured values can be viewed with a standard internet browser

  • Configuration of measuring and transmission cycles

  • Configurable monitoring of limit values with alarm signaling via email or text

  • Four 4 to 20mA inputs, 4 digital input and output channels

  • Modbus TCP and Modbus RTU

Benefits

  • Level, flow and pressure visualization at the desk regardless of location

  • Simple configuration of Fieldgate and easy visualization of measured values via its integrated web server

  • Connects to SupplyCare Enterprise and SupplyCare Hosting

  • Advanced functions and actions from logic programming

  • Limit value monitoring with alarm via email or SMS

  • Tank monitoring with limit status from the analog inputs (HH, H, L, LL)

  • Easy connection to field devices and connectivity to 3rd party systems
