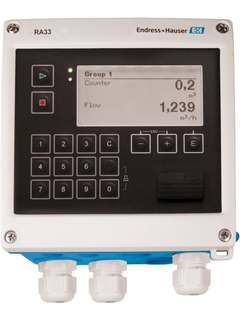

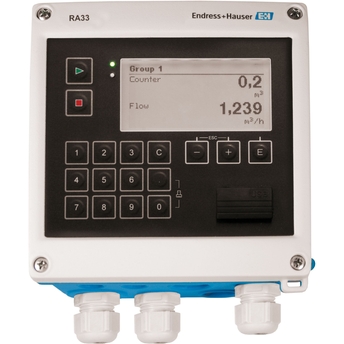

Product picture batch controller RA33

RA33
Batch Controller

Recording and controlling of batch operations

RA33
Please Wait (spinning wheel)
Loading price
Prices temporarily unavailable
Price on request
activating price
price: provide information
from CHF ??.-

Specs at a glance

  • Input

    1 x analogue (I) / pulse (for flow)
    1 x RTD (for temperature)
    1 x analogue (I) (for density)
    Loop power supply 24V DC (+/-16%)

  • Output

    1 x analogue (I) / pulse (active)
    2 x open collector

  • Display

    160 x 80 Dot-Matrix LCD with white backlit
    Colour change in case of alarm event
    Active display area 70 x 34 mm

  • Calculations

    Volume calculation

Field of application

The Batch Controller RA33 is designed to record flow and control output signals for valves and pumps to ensure the exact dosing of predefined batch quantities. The measured volume can be corrected with the temperature/density compensation function. The filling process can be optimized with an automatic or fixed after-run correction. Mineral oils can be corrected according to the ASTM D1250-04 standard.

Recording and controlling of slow batch operations with a duration of longer than 10 seconds. Typical applications include:

  • Food industry

  • Chemical industry

  • Pharmaceutical industry

  • Oil & gas industry

Benefits

  • Fixed and automatic after-run correction for constant, extremely accurate results

  • Higher quality through fast and exact dosing

  • Optional volume correction for mineral oils as per ASTM D1250-04

  • Detailed logging of protocols (preset counter, volume counter, batch name and number) as well as error messages and changes of operating parameters

  • Standard models are suitable for connecting and supplying all common flow transmitters, temperature sensors and density sensors

  • Remote control option to start and abort batch runs

  • Daily, monthly and annual statistics on the batch run size and quantity
