Specs at a glance
-
Input
2 x universal (U, I, R, RTD, TC)
-
Output
1 x loop power supply
-
Display
Multicolor backlight LCD
White/black/yellow
Bargraph
Unit
TAG
Alarm warning in plain text -
Power Supply
20...250V AC/DC
Field of application
Analog measured values are indicated, evaluated and calculated by the process meter. With the integrated loop power supply two-wire sensors can be powered. The universal inputs enable the connection of current, voltage, RTDs and TCs. Limit values can be monitored and relays can be switched. Via analog outputs process signals can be forwarded. The integrated application package "differential pressure" allows the quick and easy commissioning for differential pressure applications.

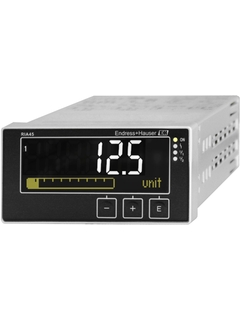

The RIA45 panel meter exhibits a display, analog inputs for process and status signals, analog and digital outputs, and an interface for configuration. Connected sensors can be powered by the integrated LPS. All measured and calculated values are available as a signal source for display, outputs, relays and the interface.
Plant and apparatus engineering and construction
Control rooms and cabinets
Laboratories
Process recording and supervision
Process control
Signal adjustment and conversion
Benefits
-
5-digit 7-segment LC display, backlit
-
1 or 2 universal inputs
-
2 relays (optional)
-
Min./max. value saved
-
1 or 2 calculated values and linearization table
-
Digital status output (Open Collector)
SIL2 approval (optional); marine approval
