Prothermo NMT539 - Average temperature

Average temperature measurement

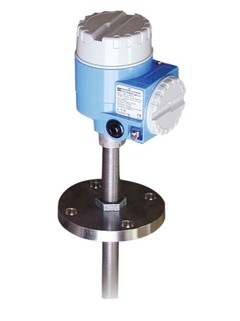

Prothermo NMT539

High precision average temperature measurement

NMT539
Please Wait (spinning wheel)
Loading price
Prices temporarily unavailable
Price on request
activating price
price: provide information
from CHF ??.-

Specs at a glance

  • Accuracy

    +/- 0.1 °C

  • Max. process pressure (static)

    0 bar...0.5 bar
    (0 psi...7.25 psi)

  • Operating temperature range

    Standard:
    -40 °C...100 °C
    Optional:
    -55 °C...235 °C
    Water Bottom spec.:
    -40 °C...100 °C
    Cyrogenic:
    -170 °C...60 °C

  • Max. immersion length on request

    40 m (131.2 ft)

Field of application

Prothermo NMT539 is an intelligent HART signal converter, with a combined average temperature sensor and water bottom interface probe. For average temperature measurement consists of precision multispot Pt100 elements. The NMT539 is a highly capable solution for constant average temperature data and water interface data via HART communication. For custody transfer and accurate inventory measurement, it is best suited connected to Proservo NMS5 or Tank Side Monitor NRF590 with Micropilot.

For precision average temperature and water bottom measurement.

  • Process connection: Flanges

  • Temperature: -40 to +100°C (-40 to +212°F)

  • Measuring distance: 40m (131.2ft)

  • Accuracy: ± 0.1°C

  • International explosion protection certificates

Benefits

  • Intrinsically safe device allowing for the safest electrical configuration possible

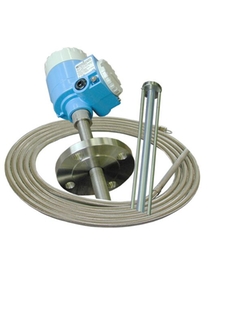

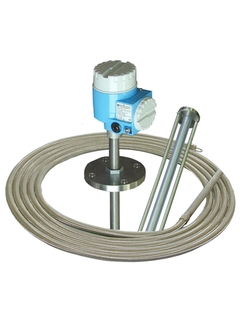

  • Available in four different versions based on customer requirements:
    Converter only
    Converter and temperature probe
    Converter and water bottom probe
    Converter, temperature and water bottom probe

  • Converter is compatible with various element types in third party manufacturer temperature probes

  • Compatible with Endress+Hauser's user friendly FieldCare

  • Variety of process connections and cable entries available to meet worldwide classifications

  • High reliability and easy installation

  • Maintenance free
