iTEMP TMT112
DIN rail temperature transmitter

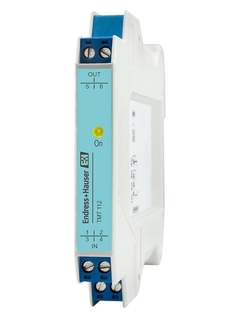

Product picture temperature transmitter TMT112 ©Endress+Hauser

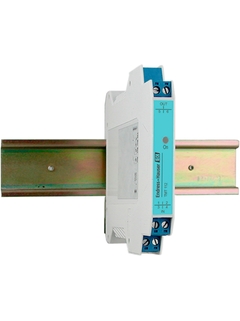

Product picture temperature transmitter TMT112 ©Endress+Hauser

Transformation of sensor signals into stable and standardized output signals for all industries.

Unsurpassed reliability, accuracy and long-term stability in critical processes over all industries. The configurable transmitter not only transfers converted signals from resistance thermometers (RTD) and thermocouples (TC), it also transfers resistance and voltage signals using HART® communication. Swift and easy operation, visualization and maintenance by PC using operating software. Space-saving DIN rail mounting according to IEC 60715 (housing width: 12.6 mm).

  • Simple products

  • Easy to select, install and operate

Technical excellence

Simplicity

  • Standard products

  • Reliable, robust and low-maintenance

Technical excellence

Simplicity

  • High-end products

  • Highly functional and convenient

Technical excellence

Simplicity

  • Specialized products

  • Designed for demanding applications

Technical excellence

Simplicity

Variable

FLEX selections Technical excellence Simplicity
  • F
  • L
  • E
  • X

Fundamental selection

Meet your basic measurement needs

Technical excellence
Simplicity
  • F
  • L
  • E
  • X

Lean selection

Handle your core processes easily

Technical excellence
Simplicity
  • F
  • L
  • E
  • X

Extended selection

Optimize your processes with innovative technologies

Technical excellence
Simplicity
  • F
  • L
  • E
  • X

Xpert selection

Master your most challenging applications

Technical excellence
Simplicity

Variable

  • Specs at a glance

    • Accuracy

      (Pt100, -50...200 °C) <= 0,2 K
      (Pt100, -58...392 °F) <= 0,4 °F

please wait Loading alternative products

Quick selection

Choose from our suggested options
Sales price
  • <%label%>
  • <%feature%>
  • Process Connection
  • <%message%>

or

Individual configuration

Continue your selection from all possible options
  • Benefits

    • Universal settings with HART®-protocol

    • High accuracy in total ambient temperature range

    • Fault signal on sensor break or short circuit, NAMUR NE 43 compliant

    • EMC to NAMUR NE 21, CE

    • Ex-Certification: ATEX Ex, CSA IS, FM IS

    • Galvanic isolation

  • Field of application

    • Temperature transmitter with HART® -Protocol for converting various input signals into a scalable 4 to 20 mA analog output signal

    Input:

    • Resistance thermometer (RTD)

    • Thermocouple (TC)

    • Resistance transmitter (Ω)

    • Voltage transmitter (mV)

    • HART® -Protocol for...

Features and specifications

Back

Details

  • Measuring principle

    Rail transmitter

  • Input

    1 x RTD, TC, Ohm, mV

  • Output

    1 x analog 4...20 mA

  • Auxiliary power supply

    12...35 V DC (standard-version)

    12...30 V DC (Ex-version)

  • Communication

    HART

  • Installation

    DIN rail

  • Accuracy

    (Pt100, -50...200 °C) <= 0,2 K

    (Pt100, -58...392 °F) <= 0,4 °F

  • Galvanic isolation

    yes

  • Certification

    UL rec. Com

    FM IS,NI,Class I,Div.1+2,Group ABCD

    CSA IS,NI,Class I,Div.1+2,Group ABCD

    ATEX II2(1)G EEx ia IIC T4/T5/T6

    ATEX II3G Ex nA IIC T6

    CSA General Purpose

Documents / Manuals / Software

Accessories / Spare parts

Nr
Order code
Specification
    • Order code FXA195-

      Commubox FXA195

      Modem to connect HART field devices to a computer via USB. Commissioning of field devices with software tool. :: To connect to a intrinsically safe signal circuit. :: SIL2, IEC61508.

    • Order code READWIN-

      Readwin 2000 Operation + Read. software

    • Order code

      The unit is not repairable

  • Successor
