iTHERM TMS02 MultiSens Flex Multipoint

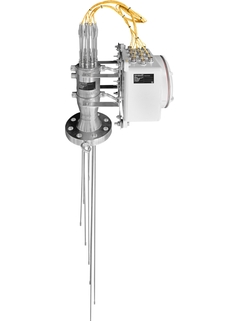

iTHERM TMS02 MultiSens Flex Multipoint ©Endress+Hauser

Modular direct contact TC and RTD multipoint thermometer for oil, gas and petrochemical applications

The iTHERM TMS02 MultiSens Flex can be customized for various applications: Bendable into a 3D layout, it provides a complete temperature profile using only a single process connection. The device is configurable with or without thermowells for optimal response times, mechanical strength or sensors replaceability. It is available with either TC/RTD technology or with our iTHERM StrongSens and features an advanced diagnostics chamber for additional safety.

This product is not available in this market.

Quick selection

Choose from our suggested options
  • <%label%>
  • <%feature%>
  • Process Connection
  • <%message%>

or

Individual configuration

Continue your selection from all possible options
  • Benefits

    • Infinite layouts of 3D sensors distribution for any desired process monitoring configuration

    • High degree of customization thanks to a modular product design for easy installation, process integration and maintenance

    • High degree of insert process...

  • Field of application

    • Petrochemical industry

    • Oil & Gas industry

    • Heavy Chemical processes

Features and specifications

Back

Details

  • Measuring principle

    Resistance Temperature Detector

  • Characteristic / Application

    metric style

    easy-to-use

    suitable for hazardous areas

    flanged process connection

    light chemical processes

    3D sensors distributions

    modular design

    replaceable sensors during shutdown

    diagnostic chamber

  • Terminal head

    Junction box - aluminium - as accessory

    Junction box - stainless steel - as accessory

    on board or remote Junction box

  • Thermowell / protection tube

    without (for direct contact sensors type)

    with (for replaceable sensors)

    with (for increased mechanical protection)

    Multi-thermowells, each one dedicated to a sensor

  • Insert / probe

    mineral insulated (MI), flexible

    mineral insulated (MI), flexible, with its own thermowell

  • Outer diameter protection tube / Insert

    6,0 mm (0,24'')

    8,0 mm (0,31")

    10,29 mm (1/8")

  • Max. immersion length on request

    up to 30.000,00 mm (1181'')

  • Material protection tube/ thermowell

    1.4401 (316)

    1.4435 (316L)

    1.4541 (321)

    1.4550 (347)

    Alloy 600 (2.4816)

  • Process connection

    flange:

    2" ASME/ANSI B16.5 150
    ...600

    3" ASME/ANSI B16.5 150
    ..600

    4" ASME/ANSI B16.5 150
    ...600

    6" ASME/ANSI B16.5 150
    ...600

    8" ASME/ANSI B16.5 150
    ...600

    DN80 EN/DIN 1092.1 PN10
    ...PN100

    DN100 EN/DIN 1092.1 PN10
    ...PN100

    DN125 EN/DIN 1092.1 PN10
    ...PN100

    DN150 EN/DIN 1092.1 PN10
    ...PN100

    DN200 EN/DIN 1092.1 PN10
    ...PN100

  • Tip shape

    straight

    reinforced

    easy-fix

  • Operating temperature range

    Type K:

    -270 °C ...1.100 °C

    (-454 °F ...2.012 °F)

    Type J:

    -210 °C ...760 °C

    (-346 °F ...1.382 °F)

    Type N:

    -270 °C …1100 °C

    (-454 °F ...752 °F)

    Pt100 WW; 3mm; 316L; -200...600oC

    Pt100 WW; 6mm; 316L; -200...600oC

    Pt100 TF; 3mm; 316L; -50…400oC

    Pt100 TF; 6mm; 316L; -50…400oC

    Pt100 StrongSens; 6mm; 316L; -50…500oC

  • Max. process pressure (static)

    at 20 °C: 200 bar (2900 psi)

  • Accuracy

    class 2 acc. to IEC 60584

    ASTM E230 and ANSI MC 96.1

    IEC/Class A

    IEC/Class AA

  • Response time

    depending on configuration:


    TC:

    t50 = 2 s

    t90 = 5 s


    RTD:

    t50 = 0,8s

    t90 = 2s

  • Integration head transmitter

    yes (4 … 20 mA; HART; PROFIBUS PA; FOUNDATION FIELDBUS)

  • Ex - approvals

    ATEX

    IECEX

  • Certification

    SIL (transmitter only)

Documents / Manuals / Software

Accessories / Spare parts

Nr
Order code
Specification
    • Order code TMT112-

      iTEMP TMT112,Transmitter DIN rail HART

      Temperature transmitter, HART protocol. Application: RTD, TC, Ohm, mV. 2-wire 4-20mA, galvanic isolation. Fault reaction: NAMUR NE 43. Rail IEC 60715. Width: 12.6mm. UL listed.

    • Order code TMT122-

      iTEMP TMT122,Transmitter DIN rail HART

      Temperature transmitter, HART protocol. Application: RTD, TC, Ohm, mV. 2-wire 4-20mA, galvanic isolation. Fault reaction: NAMUR NE 43. Rail IEC 60715. Wide: 22.5mm. UL listed. GL (German Llyod) Marine.

    • Order code TMT125-

      iTEMP TMT125, Multichannel Transmitter

      Product being phased out, limited availability. Temperature transmitter. Application: RTD, TC, Ohm, mV. 8-channel. Galvanic isolation.

    • Order code TMT142-

      iTEMP TMT142, Field Transmitter HART

      Temperature transmitter, HART protocol. Application: RTD, TC, Ohm, mV. 2-wire 4-20mA, galvanic isolation. Failure mode: NAMUR NE 43. Single compartment, NEMA 4X, IP67. UL listed.

    • Order code TMT162-

      iTEMP TMT162, Field Transmitter

      Temperature transmitter. Application: RTD, TC, Ohm, mV. HART, PROFIBUS PA Profile 3.02 or FOUNDATION Fieldbus separately available. Galvanic isolation 2 kV (sensor input/output). NEMA Type 4X Encl., IP67. Dual compartment. DNV GL marine approval (only HART). UL listed.

    • Order code TMT71-

      iTEMP TMT71, Transmitter 4-20mA

      2-wire temperature transmitter. Single universal sensor input. Galvanic isolation 2kV (input/output). Application: RTD, TC, Ohm and mV. Factory setup w/o additional specification:Pt100, 4-wire, 0...+100oC.

    • Order code TMT72-

      iTEMP TMT72, Transmitter HART

      2-wire temperature transmitter. Single universal sensor input. Galvanic isolation 2kV (input/output). Application: RTD, TC, Ohm and mV. Factory setup w/o additional specification: Pt100, 4-wire, 0...+100oC

    • Order code TMT84-

      iTEMP TMT84, Transmitter PA

      Dual sensor input. Advanced diagnostics:sensor monitoring. PROFIBUS PA Profile 3.02. Galvanic isolation 2kV. Application: RTD, TC, Ohm, mV. Current consumption: 11 mA. Mounting: head form B, DIN EN50446. Factory setup: CH1: Pt100, 3-wire, oC. CH2: inactive. Differing configuration optional selectable.

    • Order code TMT85-

      iTEMP TMT85, Transmitter FF

      Dual sensor input. Advanced diagnostics: sensor monitoring. FOUNDATION Fieldbus protocol Galvanic isolation 2 kV. Application: RTC, TC, Ohm, mV. Current consumption: 11 mA. Mounting: head form B, DIN EN50446. Factory setup: CH1: Pt100, 3-wire, oC. CH2: inactive. Differing configuration optional selectable.

    • Order code TMT182-

      iTEMP TMT182, Head Transmitter HART

      Temperature transmitter, Protocol HART. Application: RTD, TC, Ohm, mV. 2-wire 4-20mA, galvanicisolation. Fault reaction: NAMUR NE 43. Mounting: head form B, DIN EN50446. UL listed.

    • Order code TMT82-

      iTEMP TMT82, Transmitter HART

      2-wire temperature transmitter. Dual universal sensor input. Galvanic isolation 2kV (input/output). Application: RTD, TC, Ohm and mV. ::Highly reliable due to drift detection and sensor back up. ::Optional also for safety critical applications by means of SIL 2/3 acc. to IEC61508.
