This product is no longer available.
Please check new generation in the section predecessor / successor or contact your local Endress+Hauser entity.
-

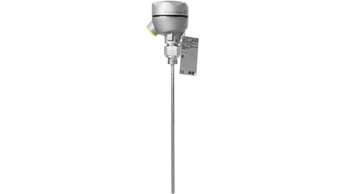

Successor
-
Standard products
- Reliable, robust and low-maintenance
Technical excellence
Simplicity
-
Specialized products
- Designed for demanding applications
Technical excellence
Simplicity
Variable
FLEX selections Technical excellence Simplicity - F
- L
- E
- X
Fundamental selection
Meet your basic measurement needs
Technical excellence Simplicity - F
- L
- E
- X
Lean selection
Handle your core processes easily
Technical excellence Simplicity - F
- L
- E
- X
Extended selection
Optimize your processes with innovative technologies
Technical excellence Simplicity - F
- L
- E
- X
Xpert selection
Master your most challenging applications
Technical excellence Simplicity Variable
-
-
Characteristic / Application
metric style
modular temperature assembly
suitable for hazardous areas
process connection as compression fitting
without neck -
Thermowell / protection tube
without (not intended to use with thermowell)
-
Insert / probe
mineral insulated (MI), flexible
-
Outer diameter protection tube / Insert
6,0 mm (0,24'')
-
Max. immersion length on request
up to 100.000,00 mm (3.937,01'')
-
Material protection tube/ thermowell
1.4401 (316)
Alloy 600 (2.4816) -
Process connection
depending on configuration
-
Operating temperature range
-40 °C ...1.100 °C
(-40 °F ...2.012 °F) -
Max. process pressure (static)
at 20 °C: 20 bar (290 psi)
-
Accuracy
class 2 acc. to IEC 60584
-
Response time
t50 = 3 s
t90 = 7 s -
Integration head transmitter
yes (4 … 20 mA; HART; PROFIBUS PA; FOUNDATION FIELDBUS)
-
Ex - approvals
ATEX
-
Certification
SIL (transmitter only)
