Transformation of sensor signals into stable and standardized output signals for all industries

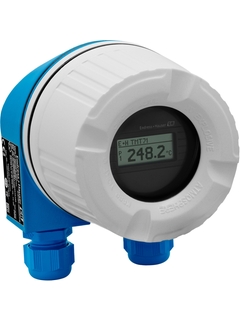

Unsurpassed reliability, accuracy and long-term stability in critical processes across all industries. The configurable transmitter transfers converted signals from RTD and thermocouple (TC) temperature probes, as well as resistance and voltage signals. The standardized 4 to 20 mA output signal is used for process measurement. Swift and easy commissioning, operation and maintenance via PC software or with integrated Bluetooth® technology and Endress+Hauser SmartBlue App.
Safe operation in hazardous areas thanks to international approvals
Reliable operation thanks to sensor and device monitoring
Integrated Bluetooth® interface for the wireless display of measured values and configuration via Endress+Hauser SmartBlue App...
Field of application

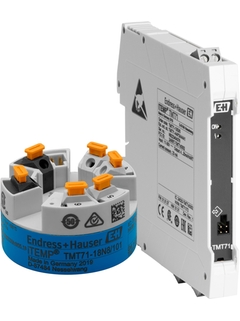

Bluetooth®-enabled or PC programmable temperature transmitter for the conversion of various input signals into a scalable, analog 4 to 20 mA output signal
Improved process efficiency and increased plant uptime
Universal input for resistance thermometers...
Documents / Manuals / Software
Accessories / Spare parts
The unit is not repairable
Order code 71044061
Fixing kit cpl.TMT82/85/84 (european)
2x screws, 2x springs, 2x spring rings, 1x sealing CDI-connector
Order code 71044062
Fixing kit cpl.TMT82/84/85 USA(american)
2x screws, 1x sealing CDI-connector
Order code 71123339
Set mounting bracket wall cpl. W06 std
Order code 71123342
Set mounting bracket pipe housing W06 st
Order code 71086650
TID10 Service cable
Extension cable for the CDI-interface for remote operation of the TID10 display for service and maintenance work Length: 40cm.
Order code 51000856
DIN rail clip
according to IEC 60715 for temperature head transmitters.
Order code DIENST-
Order code XPRFID-
Spare RFID TAG
Consists of: RFID TAG, fixing wire, crimp sleeve.
Order code TID10-

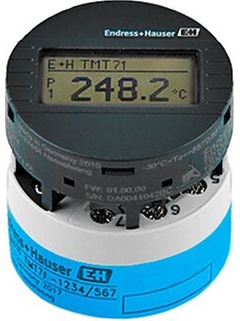

Display for head transmitter TID10
to plug on. Dot-Matrix measured value display. 12 DIP-switches buttom side. Settings: FF: Simulation, Write Lock. PA: Bus address, Write Lock. Compatible: TMT85, TMT84, TMT82.
