iTHERM TMS01 MultiSens Flex Multipoint

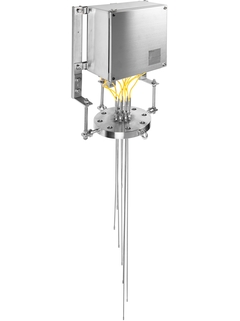

Multipoint thermometer iTHERM TMS01 MultiSens Flex ©Endress+Hauser

Modular direct contact TC and RTD multipoint thermometer for oil, gas and petrochemical applications

By complying with the highest safety standards, iTHERM TMS01 can be customized for various applications. Bendable into a 3D layout, it provides a complete temperature profile just by using one nozzle. The device is configurable with or without thermowells for optimal response times, mechanical strength or sensors replaceability. It is available either with TC or RTD technology or with our iTHERM StrongSens.

This product is not available in this market.

  • Benefits

    • Easy-to-use device with modular and flexible design, ready to be installed either for direct contact measurements or by means of sensor-dedicated protecting tubes. The device can also be installed in thermowells already in place

    • Infinite layouts of 3D...

  • Field of application

    • Petrochemical industry

    • Oil & Gas industry

    • Heavy Chemical processes

Features and specifications

Back

Details

  • Measuring principle

    Resistance Temperature Detector

  • Characteristic / Application

    metric style

    easy-to-use

    suitable for hazardous areas

    flanged process connection

    light chemical processes

    3D sensors distributions

    modular design

    replaceable sensors during shutdown

  • Terminal head

    Junction box - aluminium - as accessory

    Junction box - stainless steel - as accessory

    on board or remote Junction box

  • Thermowell / protection tube

    without (for direct contact sensors type)

    with (for replaceable sensors)

    with (for increased mechanical protection)

    Multi-thermowells, each one dedicated to a sensor

  • Insert / probe

    mineral insulated (MI), flexible

    mineral insulated (MI), flexible, with its own thermowell

  • Outer diameter protection tube / Insert

    6,0 mm (0,24'')

    8,0 mm (0,31")

    10,29 mm (1/8")

  • Max. immersion length on request

    up to 30.000,00 mm (1181'')

  • Material protection tube/ thermowell

    1.4401 (316)

    1.4435 (316L)

    1.4541 (321)

    1.4550 (347)

    Alloy 600 (2.4816)

  • Process connection

    flange:

    2" ASME/ANSI B16.5 150
    ...600

    3" ASME/ANSI B16.5 150
    ..600

    4" ASME/ANSI B16.5 150
    ...600

    6" ASME/ANSI B16.5 150
    ...600

    8" ASME/ANSI B16.5 150
    ...600

    DN80 EN/DIN 1092.1 PN10
    ...PN100

    DN100 EN/DIN 1092.1 PN10
    ...PN100

    DN125 EN/DIN 1092.1 PN10
    ...PN100

    DN150 EN/DIN 1092.1 PN10
    ...PN100

    DN200 EN/DIN 1092.1 PN10
    ...PN100

  • Tip shape

    straight

  • Operating temperature range

    Type K:

    -270 °C ...1.100 °C

    (-454 °F ...2.012 °F)

    Type J:

    -210 °C ...760 °C

    (-346 °F ...1.382 °F)

    Type N:

    -270 °C …1100 °C

    (-454 °F ...2.012 °F)

    Type T:

    -270 °C …370 °C

    (-454 °F …698 °F)

  • Max. process pressure (static)

    at 20 °C: 100 bar (1450 psi)

  • Accuracy

    class 2 acc. to IEC 60584

    ASTM E230 and ANSI MC 96.1

  • Response time

    depending on configuration:


    TC:

    t50 = 2 s

    t90 = 5 s


    RTD:

    t50 = 0,8s

    t90 = 2s

  • Integration head transmitter

    yes (4 … 20 mA; HART; PROFIBUS PA; FOUNDATION FIELDBUS)

  • Ex - approvals

    ATEX

    IECEX

  • Certification

    SIL (transmitter only)

Documents / Manuals / Software

Accessories / Spare parts

Nr
Order code
Specification
    • Order code TMT111-

      iTEMP TMT111,Transmitter DIN rail PCP

      Temperature transmitter,PC programmable. Application: RTD, TC, Ohm, mV. 2-wire 4-20mA, galvanical isolation. Fault reaction: NAMUR NE 43. Rail TH 35 IEC 60715. Width: 12.6 mm. Factory setup: Pt100, 3-wire, 0-100oC. Sensor type/connection optional selectable.

    • Order code TMT112-

      iTEMP TMT112,Transmitter DIN rail HART

      Temperature transmitter, HART protocol. Application: RTD, TC, Ohm, mV. 2-wire 4-20mA, galvanic isolation. Fault reaction: NAMUR NE 43. Rail IEC 60715. Width: 12.6mm. UL listed.

    • Order code TMT121-

      iTEMP TMT121,Transmitter DIN rail PCP

      Temperature transmitter, PC-programmable. Application: RTD, TC, Ohm, mV. 2-wire 4-20mA, galvanic isolation. Fault reaction: NAMUR NE 43. Rail IEC 60715. Width: 22.5mm. UL listed. GL (German Llyod) Marine.

    • Order code TMT122-

      iTEMP TMT122,Transmitter DIN rail HART

      Temperature transmitter, HART protocol. Application: RTD, TC, Ohm, mV. 2-wire 4-20mA, galvanic isolation. Fault reaction: NAMUR NE 43. Rail IEC 60715. Wide: 22.5mm. UL listed. GL (German Llyod) Marine.

    • Order code TMT125-

      iTEMP TMT125, Multichannel Transmitter

      Product being phased out, limited availability. Temperature transmitter. Application: RTD, TC, Ohm, mV. 8-channel. Galvanic isolation.

    • Order code TMT142-

      iTEMP TMT142, Field Transmitter HART

      Temperature transmitter, HART protocol. Application: RTD, TC, Ohm, mV. 2-wire 4-20mA, galvanic isolation. Failure mode: NAMUR NE 43. Single compartment, NEMA 4X, IP67. UL listed.

    • Order code TMT162-

      iTEMP TMT162, Field Transmitter

      Temperature transmitter. Application: RTD, TC, Ohm, mV. HART, PROFIBUS PA Profile 3.02 or FOUNDATION Fieldbus separately available. Galvanic isolation 2 kV (sensor input/output). NEMA Type 4X Encl., IP67. Dual compartment. DNV GL marine approval (only HART). UL listed.

    • Order code TMT180-

      iTEMP TMT180, Head Transmitter Pt100

      Temperature transmitter,PC-programable. Application: RTD. 2-wire 4-20mA. Fault reaction: NAMUR NE 43. Mounting: head form B, DIN EN50446. UL listed.

    • Order code TMT181-

      iTEMP TMT181, Head Transmitter PCP

      Temperature transmitter,PC-programmable. Application: RTD, TC, Ohm, mV. 2-wire 4-20mA, galvanic isolation. Fault reaction: NAMUR NE 43. Mounting: head form B, DIN EN50446. UL listed.

    • Order code TMT187-

      iTEMP TMT187, Head Transmitter RTD

      Temperature transmitter Application: RTD. 2-wire 4-20mA, galvanic isolation. Fault reaction: NAMUR NE 43. Mounting: head form B, DIN EN50446. UL listed.

    • Order code TMT71-

      iTEMP TMT71, Transmitter 4-20mA

      2-wire temperature transmitter. Single universal sensor input. Galvanic isolation 2kV (input/output). Application: RTD, TC, Ohm and mV. Factory setup w/o additional specification:Pt100, 4-wire, 0...+100oC.

    • Order code TMT72-

      iTEMP TMT72, Transmitter HART

      2-wire temperature transmitter. Single universal sensor input. Galvanic isolation 2kV (input/output). Application: RTD, TC, Ohm and mV. Factory setup w/o additional specification: Pt100, 4-wire, 0...+100oC

    • Order code TMT84-

      iTEMP TMT84, Transmitter PA

      Dual sensor input. Advanced diagnostics:sensor monitoring. PROFIBUS PA Profile 3.02. Galvanic isolation 2kV. Application: RTD, TC, Ohm, mV. Current consumption: 11 mA. Mounting: head form B, DIN EN50446. Factory setup: CH1: Pt100, 3-wire, oC. CH2: inactive. Differing configuration optional selectable.

    • Order code TMT85-

      iTEMP TMT85, Transmitter FF

      Dual sensor input. Advanced diagnostics: sensor monitoring. FOUNDATION Fieldbus protocol Galvanic isolation 2 kV. Application: RTC, TC, Ohm, mV. Current consumption: 11 mA. Mounting: head form B, DIN EN50446. Factory setup: CH1: Pt100, 3-wire, oC. CH2: inactive. Differing configuration optional selectable.

    • Order code TMT182-

      iTEMP TMT182, Head Transmitter HART

      Temperature transmitter, Protocol HART. Application: RTD, TC, Ohm, mV. 2-wire 4-20mA, galvanicisolation. Fault reaction: NAMUR NE 43. Mounting: head form B, DIN EN50446. UL listed.

    • Order code TMT82-

      iTEMP TMT82, Transmitter HART

      2-wire temperature transmitter. Dual universal sensor input. Galvanic isolation 2kV (input/output). Application: RTD, TC, Ohm and mV. ::Highly reliable due to drift detection and sensor back up. ::Optional also for safety critical applications by means of SIL 2/3 acc. to IEC61508.
