Specs at a glance
-
Accuracy
+/-1 mm (0.04 in)
-
Process temperature
-40 … +200 °C (-40 … +392 °F)
-
Process pressure / max. overpressure limit
Vacuum...20 bar (290 psi)
-
Max. measurement distance
50 m (164 ft)
-
Main wetted parts
PVDF, PTFE or PEEK
Field of application

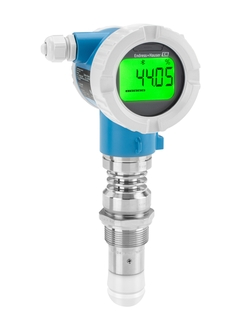

Micropilot FMR60B is part of the new generation of 80 GHz radar sensors. It is used for continuous non-contact level measurement in simple liquid applications with small process connections. Wizards guide users through commissioning, proof tests and verification of the devices and thus guarantee a simple operation. Heartbeat Technology offers verification and monitoring functions to identify anomalies for more safety and increased productivity.
Micropilot FMR60B is suitable for free-space applications up to 50m and offers high beam focusing for vessels with many internal fittings.
Process connections: Threads and flanges
Temperature: –40 to +200 °C (-40 to 392° F)
Pressure: –1 bis +20 bar (-14.5 to +290 psi)
Maximum measuring range: 50 m (164 ft)
Accuracy: ±1 mm (0.04 in)
W-band: 80 GHz
International explosion protection certificates, overfill prevention WHG, SIL, marine approval, 5- or 10-point factory calibration certificate
Benefits
Easy handling through intuitive operation and wizards, for commissioning and verification
Easier troubleshooting through recommended actions shown on the display
Reduction of systematic errors through guided SIL-locking, verification and proof testing
Safety by design: Device development according to IEC 61508
Increased productivity thanks to process monitoring, verification and diagnostics in the running process with Heartbeat Technology
