Flow assembly
CYA680

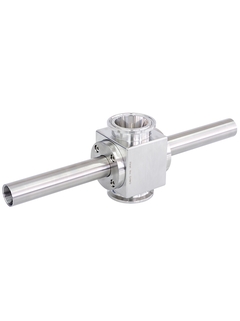

CYA680 hygienic flow assembly for small pipe diameters ©Endress+Hauser

Assembly for the Life Sciences and Chemical industries

The CYA680 flow assembly is the simple solution for pH and conductivity measurement in pipelines of hygienic and sterile applications. It is designed for inline cleaning and sterilization and perfectly suited for small pipe diameters, offering maximum safety for your high-quality products. For perfect performance in aggressive and corrosive media, CYA680 is available as PVDF version.

  • Pricing after login and configuration

Quick selection

Choose from our suggested options
    -- selected coding
    -- selected label
    <%label%>
    -- selected coding
    -- selected label
    <%feature%>
  • Process Connection
      <%label%>
      <%label%>

  • <%message%>

CYA680
Show details Hide details
Show details
Back to Quick Selection
  • <%feature%>
    <%coding%>
    <%label%>
pc
  • Optional add-ons
Please use the individual configurator to continue.
or

Individual configuration

Continue your selection from all possible options

  • Benefits

    • Optimized product yield thanks to fast measured values in low volume

    • High product safety: Assembly is suitable for cleaning-in-place (CIP) and sterilization-in-place (SIP)

    • Compliant with strict Life Sciences regulations: Certified biocompatibility...

  • Field of application

    The CYA680 flow assembly is used in combination with 12-mm sensors, e.g.

    • pH measurement

    • Conductivity measurement

    It is especially suited for all applications where small diameters are required such as:

    • Chromatography

    • Filtration

    • Reverse osmosis

Features and specifications

Back

Details

  • Measuring principle

    Glass electrode

  • Characteristic

    Life Sciences, Food & Beverages, Oil & Gas, Chemical Industries

  • Design

    flow assembly with small bore from 5mm ... 45mm corresponding the Clamp Diameters
    for mounting 1Memosens CLS82D and or 1 pH electrode (CPS71D-TU)

  • Material

    Holder: stainless steel or PVDF
    Sealings: EPDM, Kalrez, Viton, Teflon-coated Viton (all FDA compliant)

  • Dimension

    flange spacing 82,55 mm, 3;25

  • Process temperature

    max.130°C
    266°F

  • Process pressure

    Stainless steel: max. 16 bar; PVDF: max 4 bar

  • Connection

    Clamp 0,25" ... 2"

  • Additional certifications

    Material certification 3.1 EN 10204
    Surface roughness Ra < 0.76 µm.

  • Measuring principle

    Glass electrode

  • Application

    Life Sciences, Food&Beverages, Oil&Gas, Chemical Industries

  • Installation

    flow assembly,with Clamp 0,25" ... 2"

  • Characteristic

    pipe mounting

  • Design

    flow assembly with small bore from 5mm ... 45mm corresponding the Clamp Diameters
    for mounting 1 pH electrode (CPS71D-TU) and 1Memosens CLS82D

  • Material

    Holder: stainless steel or PVDF
    Sealings: EPDM, Kalrez, Viton, Teflon-coated Viton (all FDA compliant)

  • Dimension

    flange spacing 82,55 mm, 3;25"

  • Process temperature

    max.130°C
    266°F

  • Process pressure

    Stainless steel: max. 16 bar; PVDF: max 4 bar

  • Connection

    Clamp 0,25" ... 2"

  • Additional certifications

    Material certification 3.1 EN 10204
    Surface roughness Ra < 0.76 µm.
