Specs at a glance
-
Process temperature
max. 140°C
-
Process pressure
max. 10bar
Field of application

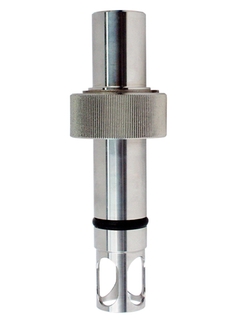

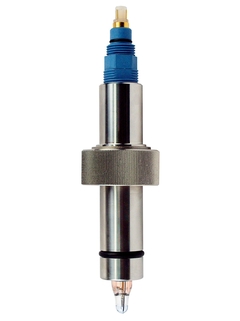

The Unifit CPA442 process assembly is the simple solution for pH/ORP or oxygen measurement in tanks and pipelines of hygienic and sterile applications. Unifit is designed for inline cleaning and sterilization according to EHEDG and 3A criteria. You can be absolutely sure that your high-quality products are never contaminated but always completely safe.
Unifit CPA442 is intended for permanent installation in tanks and pipework in:
Food and beverage
Life sciences
Water treatment
Chemicals
It is suitable for use with pressures of up to 12 bar (stainless steel).
Benefits
Certified hygienic design: Complies with 3A standard 74-05 and the criteria of EHEDG Class I
No contamination thanks to leak-tight, built-in electrode seal (molded seal)
Electropolished surface prevents build-up of residues (Ra=0.38 µm or 0.76 µm)
Suitable for CIP and SIP
Flexible adaptation to all applications by various hygienic process connections and flanges
