Specs at a glance
-
Process temperature
-15 to 140 °C (5 to 280 °F)
-
Process pressure
16 bar up to 140 °C (232 psi up to 284 °F)
Field of application

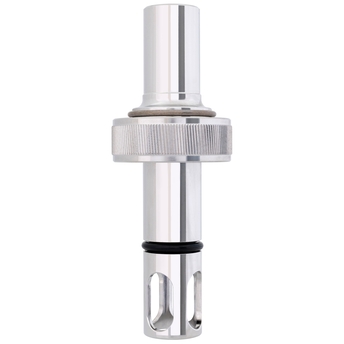

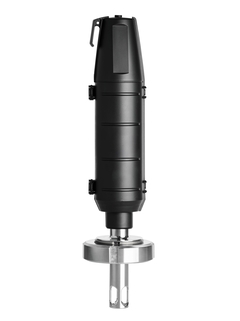

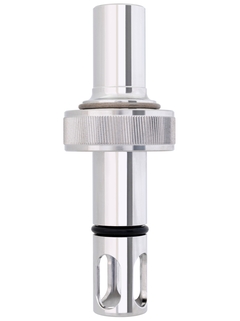

The Unifit CPA842 process assembly meets highest requirements concerning inline cleaning and sterilization. It allows the easy installation of pH/ORP, oxygen, conductivity or cell growth sensors into tanks and pipelines of hygienic and sterile applications. Unifit is designed according to EHEDG, 3-A, ASME BPE, FDA and USP 88 class VI.
Unifit CPA842 is intended for permanent installation in tanks and pipework in:
Food and beverage
Life sciences
Chemicals
It is suitable for use with pressures of up to 16 bar (stainless steel).
Benefits
Hygienic design according to EHEDG class I, 3-A standard 74-05, FDA, ASME BPE and USP 88 class VI avoids cross-contamination
-
No contamination thanks to leak-tight, built-in electrode seal
-
Less build-up of residues thanks to electropolished surface (Ra=0.38 µm or 0.76 µm)
Suitable for cleaning-in-place (CIP) and sterilization-in-place (SIP)
-
Flexible adaptation to all applications by various hygienic process connections
Predecessor
-
Standard products
- Reliable, robust and low-maintenance
Technical excellence
Simplicity
-
Specialized products
- Designed for demanding applications
Technical excellence
Simplicity
Variable
FLEX selections | Technical excellence | Simplicity |
---|---|---|
Fundamental selection Meet your basic measurement needs |
Technical excellence
|
Simplicity
|
Lean selection Handle your core processes easily |
Technical excellence
|
Simplicity
|
Extended selection Optimize your processes with innovative technologies |
Technical excellence
|
Simplicity
|
Xpert selection Master your most challenging applications |
Technical excellence
|
Simplicity
Variable |
-
-
Technical Information (TI)
TI Unifit CPA842
Hygienic process assembly for safe installation of 12 mm sensors (Pg
13.5) in the food, beverage and life sciences industriesEN 02/05/202424/01/202203/12/202023/04/2018Language:
